Stepwise rendering of sequentially staged analysis results

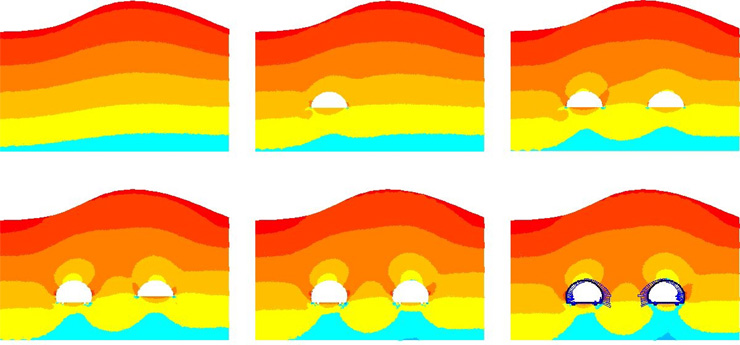

A sequentially staged analysis is also a kind of multi-step analysis, and accordingly its analysis results can be visualized and examined interactively by using multistep view. The following figure shows an example of multi-step view of a sequentially staged analysis results with 6 stages. Consistent scale option is used in this example.

< Multi-step view of sequentially stage analysis results >
