Output from external solver
Once the modeling data of a VisualFEA file are read and processed by an external solver, the resulting data can be postprocessed by VisualFEA again. In order to make the output data readable from VisualFEA, they should be written over the original VisualFEA file. In other words, the output data should be appended to the end of the modeling data in the VisualFEA file. The output data items include:
Data defining custom menu items for contouring |
|
Data defining custom menu items for vector display |
|
Data items for graphical visualization |
The output part also has the master variables and the file positions, namely:
Analysis data master variables |
|
Analysis data file positions |
The parts of the VisualFEA file other than above output items should be kept intact by the external solver. Otherwise, Visualfea can neither read nor process the file properly.

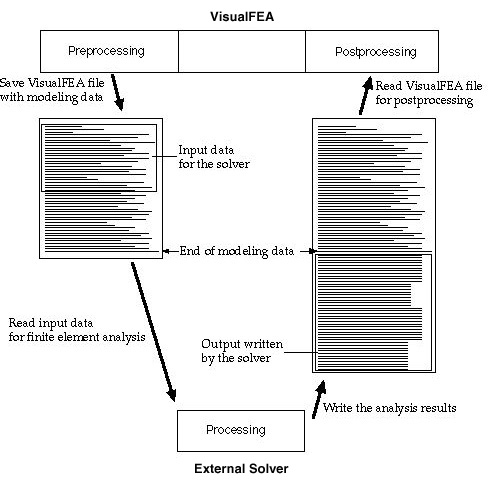

<Data flow for combined use of VisualFEA and an external solver>
|
|
