Model Rendering

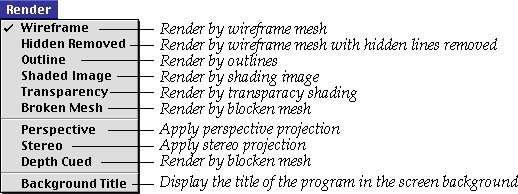

The finite element model can be represented graphically in various forms. You may set the rendering style and the projection mode by choosing menu items as shown below. When you change the rendering style or the projection mode, they are applied to the immediate redrawing of the model and to the future updates of the image.
